Extreme ti 5000 – Through-the-Wall, WhisperKool
U-WKEX5000-115-3, Self-Contained – Extreme 5000ti, with variable-speed fans, even under the most extreme outdoor conditions, Fits neatly between wall studs for quick and simple installation, Through-wall installation, 55°F temperature differential.Cellar Size: up to 1250 cu ft.

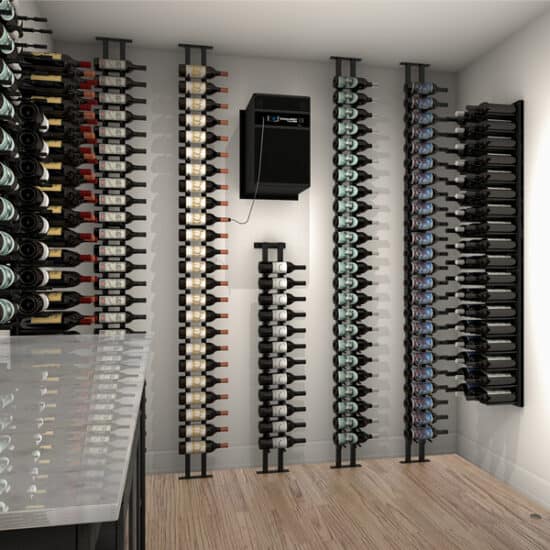

WhisperKOOL Extreme ti 5000, a high-performance, through-the-wall cooling system designed for small to mid-sized wine cellars. Built for durability and efficiency, this unit provides powerful, quiet climate control to maintain optimal storage conditions.
Product Overview

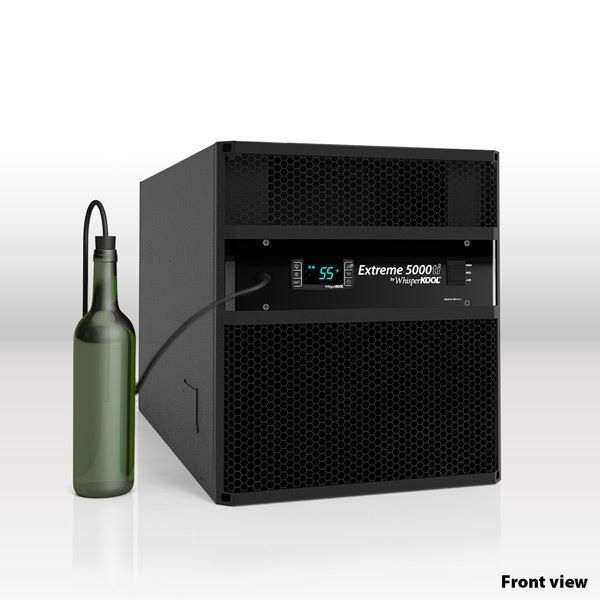

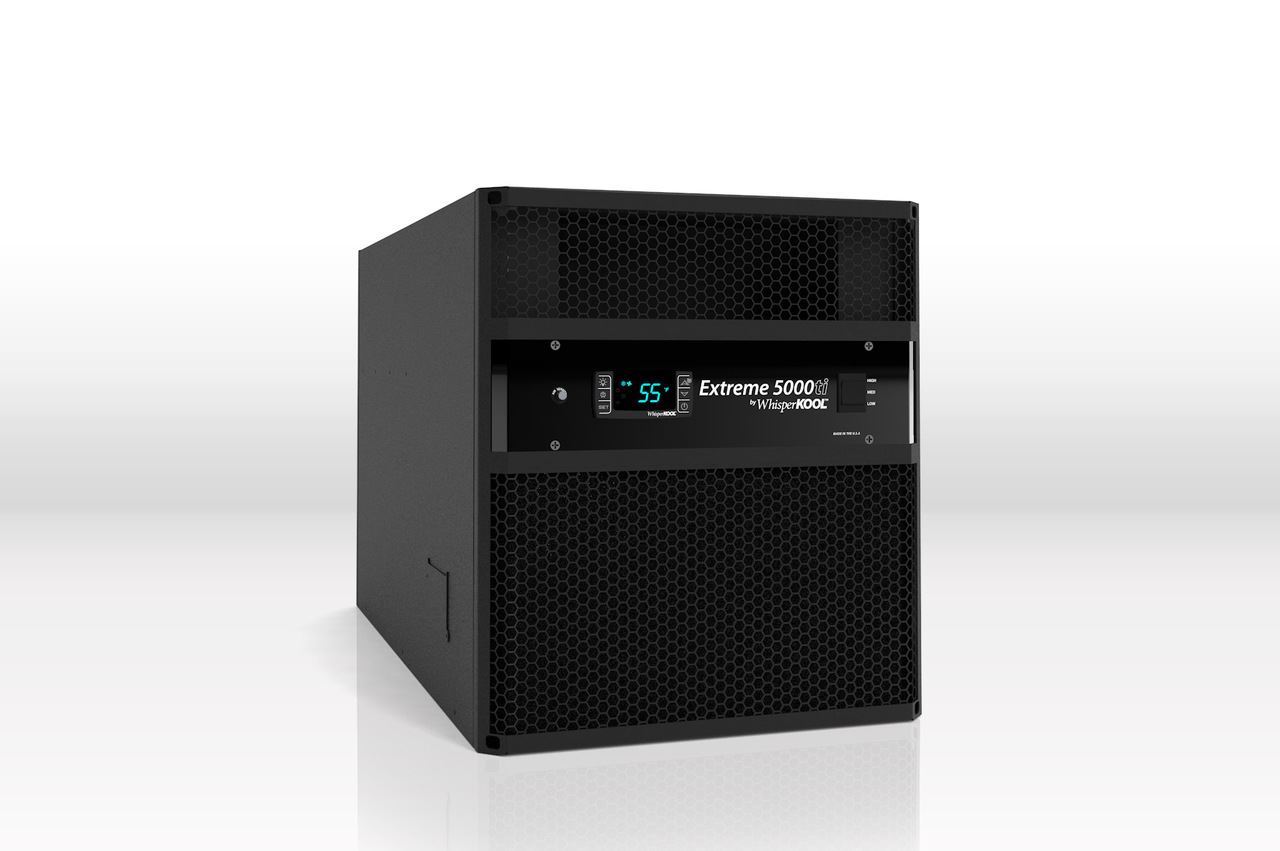

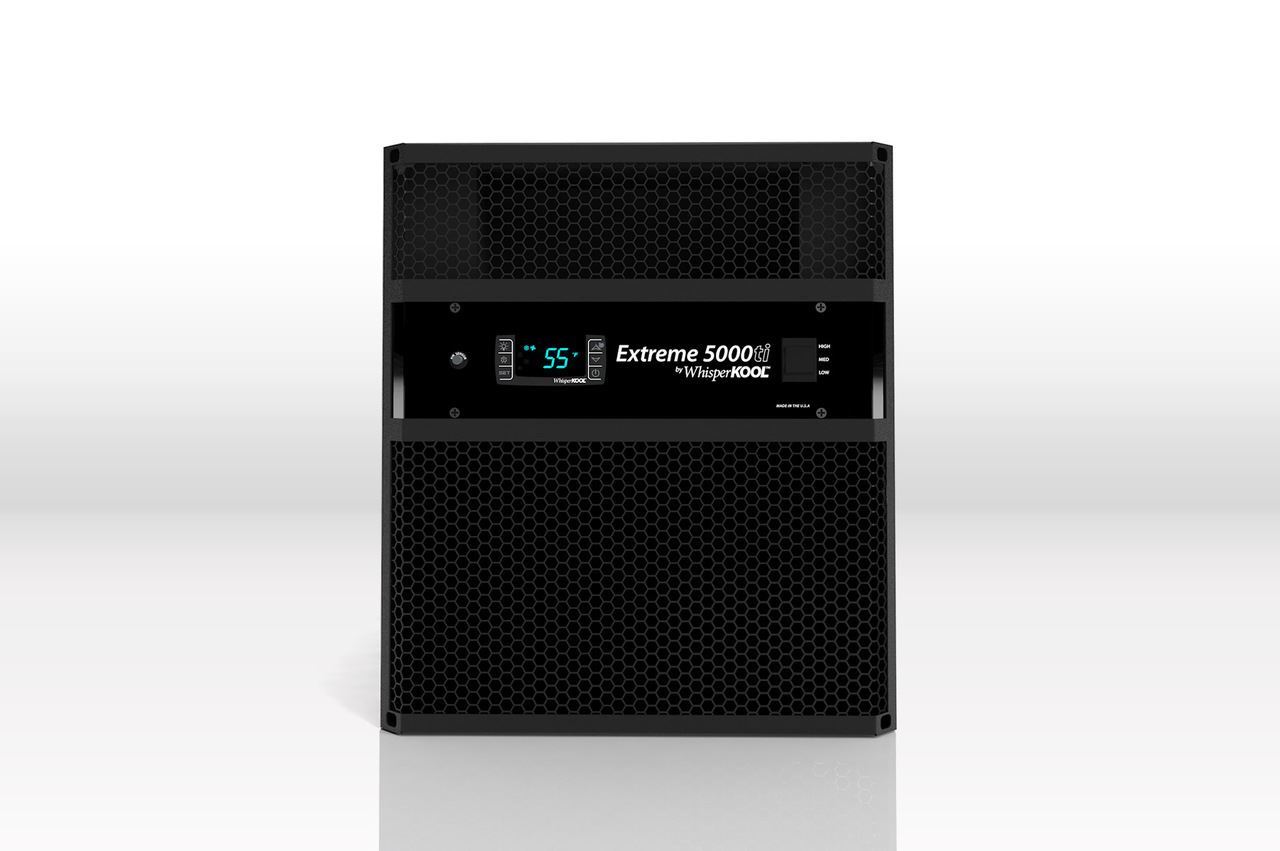

The ti 5000 features a front-facing controller and display, allowing for straightforward monitoring and adjustment from within the cellar. For exterior wall installations, an exterior grille is recommended to protect the unit from the elements. For interior installations, the system can be paired with a Condenser Ducting Plenum Kit to manage exhaust air and support proper airflow.
Key Specifications & Features
- Operating Range: Withstands temperatures from 32°F to 110°F.
- Dimensions: 14.25"W x 15.75"H x 28"D.
- Capacity: 1.5 HP, suitable for cellars up to 1250 cu. ft.
- Advanced Controls: Three-speed fan system and redesigned anti-frost functionality.
- Voltage: 115V (requires a 20-amp dedicated circuit).
Installation & Ducting Options
The Extreme ti 5000 can be wall-mounted directly or installed as a ducted system (up to 25 duct feet from the cellar). Please note the following if choosing to duct the unit:
- Thermostat: A Remote Thermostat Panel is required and must be purchased simultaneously with the cooling unit.
- Duct Limits: Ductwork should not exceed 25 feet for a single run or 50 combined feet for supply and return.
- Duct Size: 8” Return and 8” Supply.
Designed and assembled in California, the Extreme Series offers reliable, low-noise cooling for serious collectors. Please let me know if you have any questions or would like to proceed with an order.
Specifications
Cellar Size: Approx. 1250 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements.)
- BTU/h w/85°F air entering condenser coil: 4126
- Dimensions: 28"L x 14.25"W x 15.75"H
- Refrigerant: R-134a
- HP: 1/3
- Refrigeration Tons: 0.34
- Voltage Rating: 115V (20-amp dedicated circuit required); 230V (subject to availability)
- Weight: 115 lb
- Amps: 9 (running amps)
- Drain Line: 1/2” ID clear plastic tubing
- Installation: Through the wall
- Thermostat: Advanced digital controller, liquid-temperature-measuring bottle probe (retractable cable)
- Temp. Delta: Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature.
- Outside Venting: Can be done if the outside temperature does not exceed 110°F; external grille is highly recommended
