Extreme ti 3500 – Through-the-Wall, WhisperKool
U-WKEX3500-115-3, Self-Contained – Extreme 3500ti, Variable-speed fans , Reliable starting and running performance, even under the most extreme outdoor conditions. Cellar Size: 800 cu. ft.

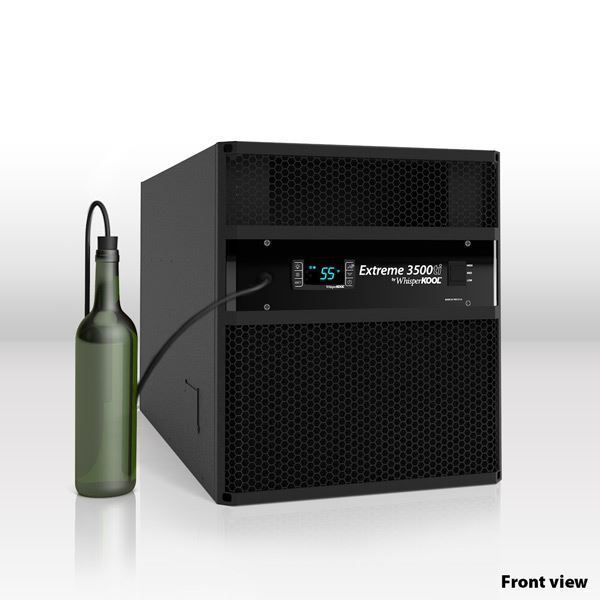

WhisperKOOL Extreme ti 3500 Series through-the-wall wine cellar cooling system.
This unit is designed for spaces up to 800 cubic feet, though factors such as glass and room positioning may affect the required thermal load.
Product Features:
- Dimensions: 14.25"W x 15.75"H x 28"D
- Capacity: Designed and assembled in California; suitable for temperatures ranging from 32°F to 100°F.
- System: Advanced three-speed fan control and redesigned anti-frost functionality.
- Ducting: 8" Supply and 8" Return.
Installation Options:
The Extreme Series can be wall-mounted directly or installed as a ducted system (up to 25 duct feet away). Please note that if you choose to duct the unit, a Remote Thermostat Panel is required and must be purchased at the same time as the cooling unit.
Specifications Overview:
- Model 3500 tiR: 800 cu. ft. capacity | 2688 BTU/h | 115 lbs.
- Voltage: 115V (20 amp dedicated circuit required).
- Thermostat: Advanced digital display with a 50ft. liquid-temperature-measuring bottle probe.
- Performance: Maintains a 55°F cellar temperature with condenser air intake up to 110°F.
NOTE: If this unit will be installed through an exterior wall, you will need to purchase an exterior housing to protect the unit. If this unit will be installed through an interior wall, the hot air exhaust may be redirected to another location using the condenser ducting plenum kit.
- 3-speed fan switch
- UV-C Lighting System available to prevent mold growth and maximize efficiency

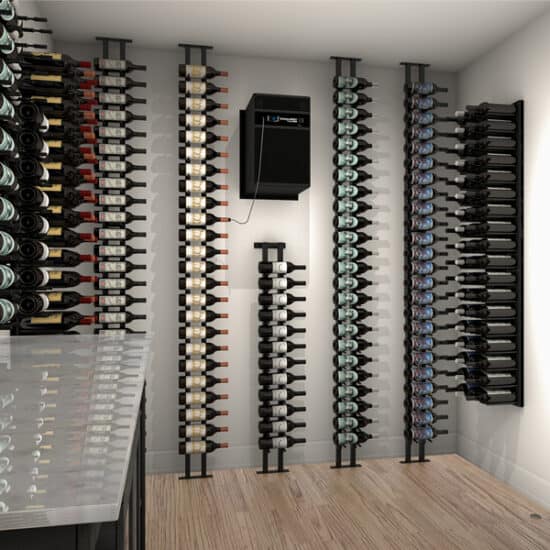

- Through-the-wall application
- 55°F temperature differential
- Liquid-temperature-measuring bottle probe
- Reliable starting and running performance, even under the most extreme outdoor conditions
Specifications
Cellar Size: Approx. 800 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements.
- BTU/h w/85°F air entering condenser coil: 3175
- Dimensions: 28"L x 14.25"W x 15.75"H
- Refrigerant: R-134a
- HP: 1/4
- Refrigeration Tons: 0.26
- Voltage Rating: 115V (20-amp dedicated circuit required); 230V (subject to availability)
- Weight: 115 lbs
- Amps: 9 (running amps)
- Drain Line: 1/2” ID clear plastic tubing
- Installation: Through the wall
- Thermostat: Advanced digital controller, liquid-temperature-measuring bottle probe (retractable cable)
- Temp. Delta: Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
- Outside Venting: Can be done if the outside temperature does not exceed 110°F; external grille is highly recommended
