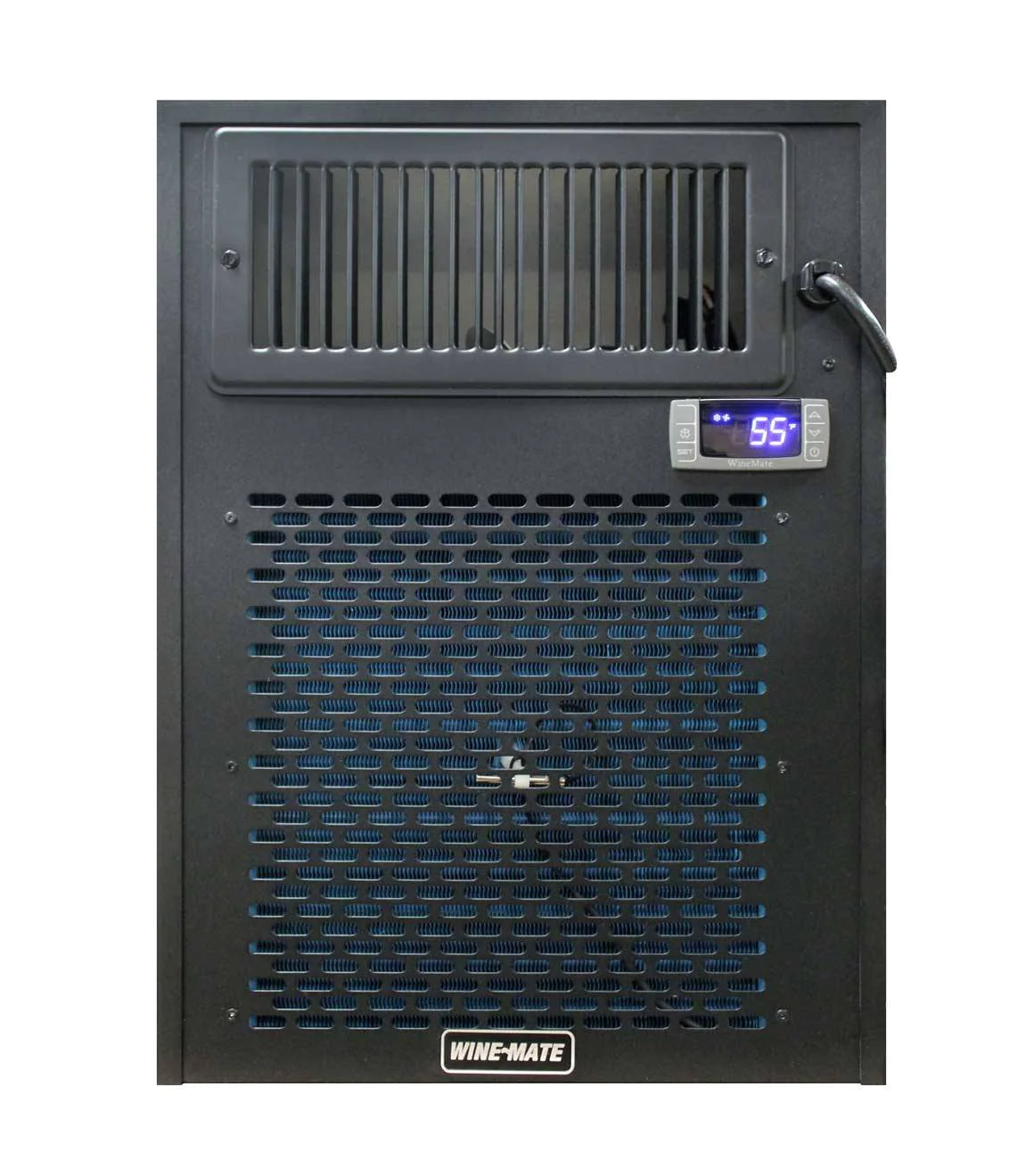

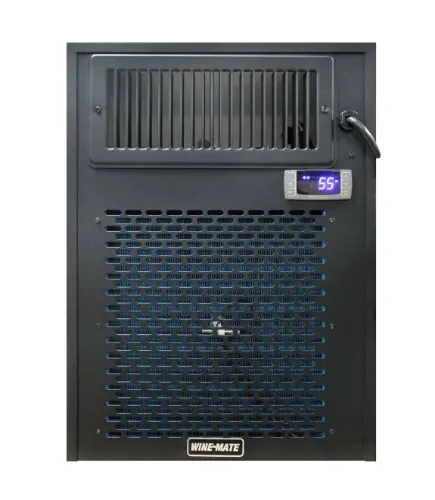

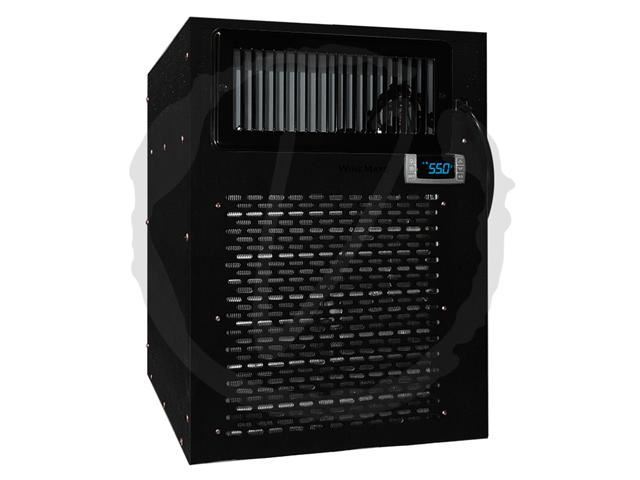

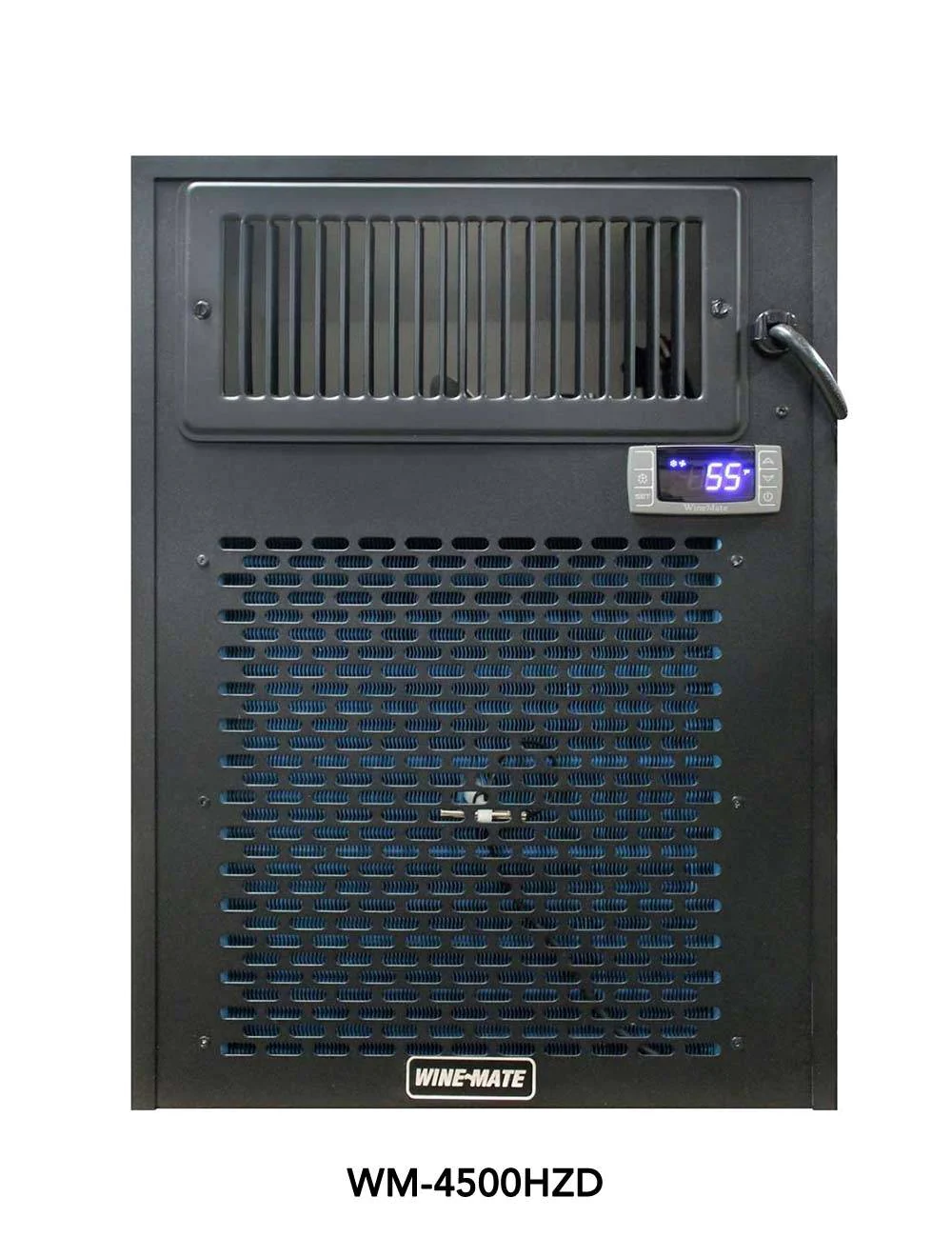

Wine-Mate 4500HZD - Wine Cellar Cooling System

wine-mate-4500HZD-wine-cellar-cooling-system, Coverage size: 1000 Cubic Feet

Be the first to review this product

Manufacturer: Wine-Mate cooling units

SKU: WM-4500HZD

$4,998.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Description:
Wine-Mate Cooling Systems are long-lasting, reliable, America-made cooling units manufactured to the highest quality standards. Top exhaust option is available for convenient installation of this unit at an additional cost, please contact the Wine Cave Sales Team for more information. Plus, no refrigeration specialists are needed--it ships to you fully-charged and ready to use.

Wine-Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine-Mate systems can be customized for your exact storage needs - please call for more information!

Details

SELF-CONTAINED: This unit is a self-contained, all-in-one, and ready for use. No copper tubing or drain line are required.
EXHAUST: Rear (standard) or top
SUPPLY: Horizontal cold air supply is optimized for use in wine rooms.
VENTING: When installed into a wine cabinet or cellar, this unit must vent outside.
TEMPERATURE: The WM-4500HZD cooling unit is designed and used to provide a stable temperature between 50~65 °F for a properly insulated and sized space.
AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-4500HZD should not be higher than 95°F or lower than 50°F in order to operate properly.
If the exhaust ambient temperature exceeds 95°F, one size larger unit must be used.
HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
WM-4500HZD cooling unit can only adjust fan run time for humidity, not speed. Adjust evaporator fan running time through the control program to adjust humidity.
REFRIGERANT: Uses R134a refrigerant which is considered environmentally friendly
DISPLAY: Digital display with easy push-button controls
NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.
CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.
WM-4500HZD is a wall unit, which can be mounted on or through a wall.
Through-wall installation: This self-contained cooling system should be mounted through the wall for flushed installation.
Four high speed fans for air efficiency
Removable grill for easy cleaning
WARRANTY: Self-contained units 1 year warranty on parts, 1 year labor.

NOTE: For use in a frameless glass cellar, the cooling unit should be concealed wherever is possible. The glass must be completely sealed.

AVAILABLE OPTIONS and CONFIGURATIONS:

Standard rear exhaust with the option to upgrade to top exhaust for an additional fee.
Mounting brackets are available for an additional fee.
Add the Wine Bottle Probe to receive the most accurate reading of your wine's temperature. The Wine Bottle Probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plugs directly into your cellar cooling system.
Add the Energy Saving & Quick Chilling upgrade to a digital temperature control of Wine-Mate cooling system.
1) Energy Saving enables the compressor to run less time in certain circumstances to save energy by increasing the set-point. To activate the Energy Saving mode, turn on the switch.
2) Quick Chilling enables the compressor to run continuously without stopping for a period of preset time for pull-down cooling. To activate Quick Chilling press and hold the UP icon for more than 3 seconds. To end Quick Chilling press and hold the UP icon for more than 3 seconds again.
Wine-Mate self-contained units must be operated in an upright position at all times. They should not be placed on their side or flipped upside down.

Features:

Long-lasting, reliable and manufactured to the highest quality standards
Four high speed fans for air efficiency
Self-contained ready for use and easy to install
Oversized and bottom feeding evaporator for humidity maintenance
Adjustable temperature control sets 50-65 degrees F
Digital control display
Uses environment friendly R134a refrigerant
Removable grill for easy cleaning

SPECS & RESOURCES

DIMENSIONS: 14 1/4” W x 21 1/4” D x 19 3/4” H
ELECTRICAL REQUIREMENTS: 115V 60Hz 9A
WEIGHT: 75lb
NOISE: 58 dBA for cooling unit and 54 dBA for wine room
CFM: 250
BTU: 4500
COVERAGE SIZE: 1000 cu ft

Overview
Reviews
Contact Us

Details

SELF-CONTAINED: This unit is a self-contained, all-in-one, and ready for use. No copper tubing or drain line are required.
EXHAUST: Rear (standard) or top
SUPPLY: Horizontal cold air supply is optimized for use in wine rooms.
VENTING: When installed into a wine cabinet or cellar, this unit must vent outside.
TEMPERATURE: The WM-4500HZD cooling unit is designed and used to provide a stable temperature between 50~65 °F for a properly insulated and sized space.
AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-4500HZD should not be higher than 95°F or lower than 50°F in order to operate properly.
If the exhaust ambient temperature exceeds 95°F, one size larger unit must be used.
HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
WM-4500HZD cooling unit can only adjust fan run time for humidity, not speed. Adjust evaporator fan running time through the control program to adjust humidity.
REFRIGERANT: Uses R134a refrigerant which is considered environmentally friendly
DISPLAY: Digital display with easy push-button controls
NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.
CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.
WM-4500HZD is a wall unit, which can be mounted on or through a wall.
Through-wall installation: This self-contained cooling system should be mounted through the wall for flushed installation.
Four high speed fans for air efficiency
Removable grill for easy cleaning
WARRANTY: Self-contained units 1 year warranty on parts, 1 year labor.

NOTE: For use in a frameless glass cellar, the cooling unit should be concealed wherever is possible. The glass must be completely sealed.

AVAILABLE OPTIONS and CONFIGURATIONS:

Standard rear exhaust with the option to upgrade to top exhaust for an additional fee.
Mounting brackets are available for an additional fee.
Add the Wine Bottle Probe to receive the most accurate reading of your wine's temperature. The Wine Bottle Probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plugs directly into your cellar cooling system.
Add the Energy Saving & Quick Chilling upgrade to a digital temperature control of Wine-Mate cooling system.
1) Energy Saving enables the compressor to run less time in certain circumstances to save energy by increasing the set-point. To activate the Energy Saving mode, turn on the switch.
2) Quick Chilling enables the compressor to run continuously without stopping for a period of preset time for pull-down cooling. To activate Quick Chilling press and hold the UP icon for more than 3 seconds. To end Quick Chilling press and hold the UP icon for more than 3 seconds again.
Wine-Mate self-contained units must be operated in an upright position at all times. They should not be placed on their side or flipped upside down.

Features:

Long-lasting, reliable and manufactured to the highest quality standards
Four high speed fans for air efficiency
Self-contained ready for use and easy to install
Oversized and bottom feeding evaporator for humidity maintenance
Adjustable temperature control sets 50-65 degrees F
Digital control display
Uses environment friendly R134a refrigerant
Removable grill for easy cleaning

SPECS & RESOURCES

DIMENSIONS: 14 1/4” W x 21 1/4” D x 19 3/4” H
ELECTRICAL REQUIREMENTS: 115V 60Hz 9A
WEIGHT: 75lb
NOISE: 58 dBA for cooling unit and 54 dBA for wine room
CFM: 250
BTU: 4500
COVERAGE SIZE: 1000 cu ft
