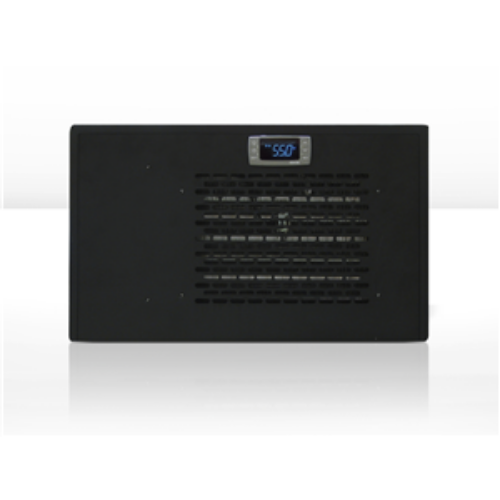

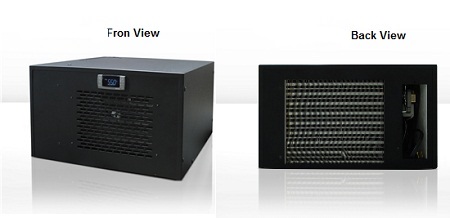

The Wine-Mate 2520CD is a self-contained cooling system designed by Vinotemp to manage wine cellar environments up to 200 cubic feet. This 220V/240V unit is specifically engineered for international use and is not compatible with standard US 115V outlets.
Key Technical Specifications:
- Voltage: 220V / 240V AC
- Coverage: Up to 200 cubic feet
- Dimensions: 18” W x 16.5” D x 10.5” H
- Airflow: Equipped with four high-speed fans
- Refrigerant: Eco-friendly R134a
- Temperature Range: Adjustable between 50°F and 65°F
- Humidity Control: Maintains an optimal range of 50% to 75% RH
System Design and Airflow:
- Self-Contained: The system arrives fully charged and ready for installation without the need for a refrigeration specialist.
- Bottom Cold Air Supply: Discharges air downward to optimize circulation within wine cabinets.
- Versatile Ventilation: The exhaust can be configured for top, rear, or side discharge to suit your mounting requirements.
- Humidity Preservation: Features an oversized evaporator designed to maintain moisture levels effectively.
Alternative Applications:
This versatile unit is also suitable for storing other climate-sensitive items, including fine cigars, specialty chocolates, cured meats, and high-end furs or leather goods.
