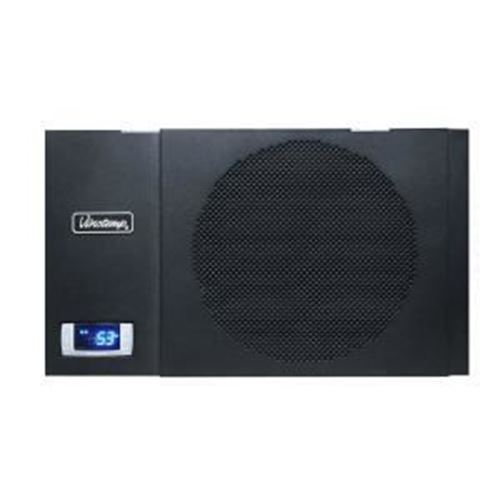

Wine-Mate 2500HTD- - Wine Cellar Cooling System

The WM-2500HTD wine cooling unit packs 1000 more BTU of cooling capacity into the same space as the VINO-1500HTD. The Wine-Mate HTD line represents our latest innovation in climate control and the 2500HTD unit has a capacity of up to 200 cubic feet.

This self-contained unit not only controls the temperature in your cabinet but also moderates the humidity to a much greater degree than previous models. The new design has also been optimized for better distribution of cool air. Wine-Mate Cooling Systems are long-lasting, reliable cooling units assembled to the highest quality standards.

This unit features humidity and temperature digital control using innovative technology. An over-sized evaporator provides subtle cooling, with tube-axial fans for both the condenser and evaporator. Extra insulation is provided for both thermal and noise isolation. HTD evaporator units have a special coil coating and provide two-way air supply for better operation.

The 2500HTD has a robust housing and the grill size has been optimized for safety and easier cleaning. The Wine-Mate 2500HTD is a self-contained, ready-for-use cooling system with easy installation. Options: Multiple exhaust options for top or rear hot air exhaust.

Wine-Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine-Mate systems can be customized for your exact storage needs - please call for more information!

Details

• SELF-CONTAINED: This unit is a self-contained, all-in-one, and ready for use. No copper tubing or drain line are required.
• EXHAUST: Rear (standard) or top
• VENTING: When installed into a wine cabinet, this unit must vent outside the wine cabinet.
• TEMPERATURE: The WM-2500-HTD cooling unit is designed and used to provide a stable temperature between 50~65 °F for a properly insulated and sized space.
• AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-2500-HTD should not be higher than 95°F or lower than 50°F in order to operate properly.
• If the exhaust ambient temperature exceeds 95°F, one size larger unit must be used.
• HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
• WM-2500-HTD cooling unit can only adjust fan run time for humidity, not speed. Adjust evaporator fan running time through the control program to adjust humidity.
• REFRIGERANT: Uses R134a refrigerant which is considered environmentally friendly
• DISPLAY: Digital display with easy push-button controls
• NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.
• CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.
• HTD evaporators have a water-repellent self-cleaning and anti-microbial coat that helps your equipment stay efficient and actively kills harmful bio-film growth.
• Exchangeable supply grille can be used for front, back, and down cold air distribution.
• Extra insulations are used for both thermal and noise isolation.
• Condensate tray is used for humidity adjustment.
• WARRANTY: Self-contained units 1 year warranty on parts, 1 year labor.



AVAILABLE OPTIONS and CONFIGURATIONS:

• Standard rear exhaust with the option to upgrade to top exhaust.
• Add the Wine Bottle Probe to receive the most accurate reading of your wine's temperature. The Wine Bottle Probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plugs directly into your cellar cooling system.
• Standard front power cord with the option to upgrade to the rear cord for an additional fee.
• Mounting brackets are available for an additional fee.
• Add the Energy Saving & Quick Chilling upgrade to a digital temperature control of Wine-Mate cooling system.
  1) Energy Saving enables the compressor to run less time in certain circumstances to save energy by increasing the set-point. To activate the Energy Saving mode, turn on the switch.
  2) Quick Chilling enables the compressor to run continuously without stopping for a period of preset time for pull-down cooling. To activate Quick Chilling press and hold the UP icon for more than 3 seconds. To end Quick Chilling press and hold the UP icon for more than 3 seconds again.
• Wine-Mate self-contained units must be operated in an upright position at all times. They should not be placed on their side or flipped upside down.



SPECS & RESOURCES

• DIMENSIONS: 14 1/4” W x 16” D x 13 1/4” H
• ELECTRICAL REQUIREMENTS: 115V 60Hz 5A
• WEIGHT: 55lb
• NOISE: 57 dBA for cooling unit and 53 dBA for cabinet
• CFM: 180
• BTU: 2500
• COVERAGE SIZE: 200 cu ft

NOTE: Wine-Mate self-contained units must be operated in an upright position at all times. They should not be placed on their side or flipped upside down.
