Fully Ducted Phantom 5000 Self-Contained Wine Cellar Cooling Unit

Fully Ducted Self-Contained – Phantom 5000, Numerous ducting options, Suitable for operation in ambient temperatures as high as 110°F. Cools up to 1250 cu. ft.
SKU: U-WKPH5000-115-2
Free shipping
$9,299.00

Description

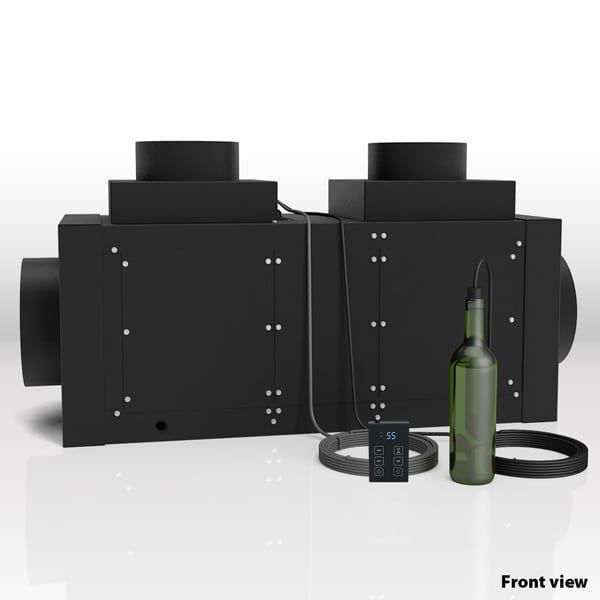

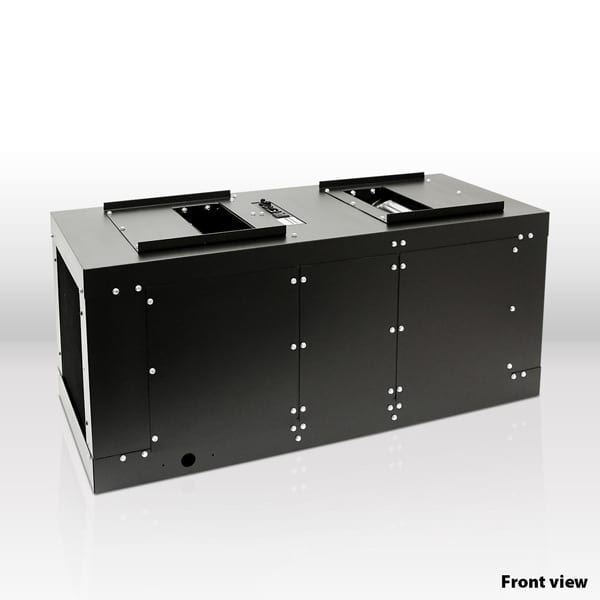

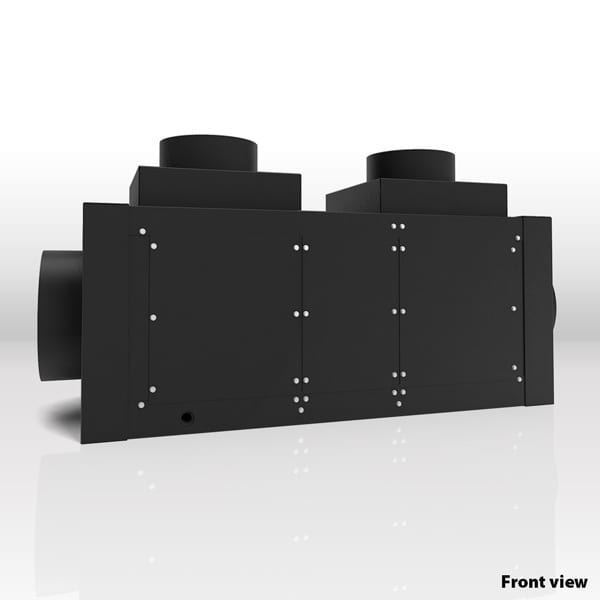

The fully ducted Phantom Series combines powerful cooling capacity with flexible installation options. If space is at a premium in your cellar and you need a powerful, fully ducted unit, the Phantom might be for you. The Phantom’s powerful blowers can be reoriented to the right, left, or top of the unit. This grants you the option of installing the unit in any ducting configuration that best suits your needs, even in limited space.

Not sure if the Phantom is the right unit for your wine cellar? Contact wine cave for any quetions

Note: An HVAC-R technician is recommended for installation.

 Phantom Series Features:

  • Flexible installation options
  • Quiet operation
  • Quick-to-access components for ease of maintenance
  • Corrosion-resistant drip tray
  • Black powder-coated paint scheme
  • Suitable for operation in ambient temperatures as high as 110°

Specifications

Cellar Size: Approx. 1250 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements)

  • BTU/h w/85°F air entering condenser coil: 5521

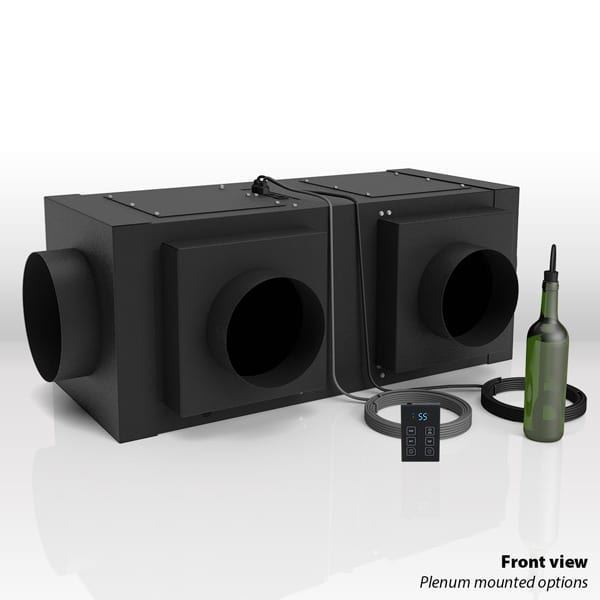

  • Dimensions: 37"L x 15.75"W x 15.75"H (without duct plenums), 48"L x 15.75"W x 22.75"H (duct plenums on top of unit), 48"L x 22.75"W x 15.75"H (duct plenums on side of unit) Refrigerant: R-134a
  • HP: 1/3
  • Refrigeration Tons: 0.46
  • Voltage Rating: 115V (20-amp dedicated circuit required); 230V (subject to availability)
  • Weight: 115 lbs
  • Amps: 7.5 (running amps)
  • Duct Size: 8" supply, 10" return (evaporator and condenser)
  • Drain Line: 1/2" ID clear plastic tubing

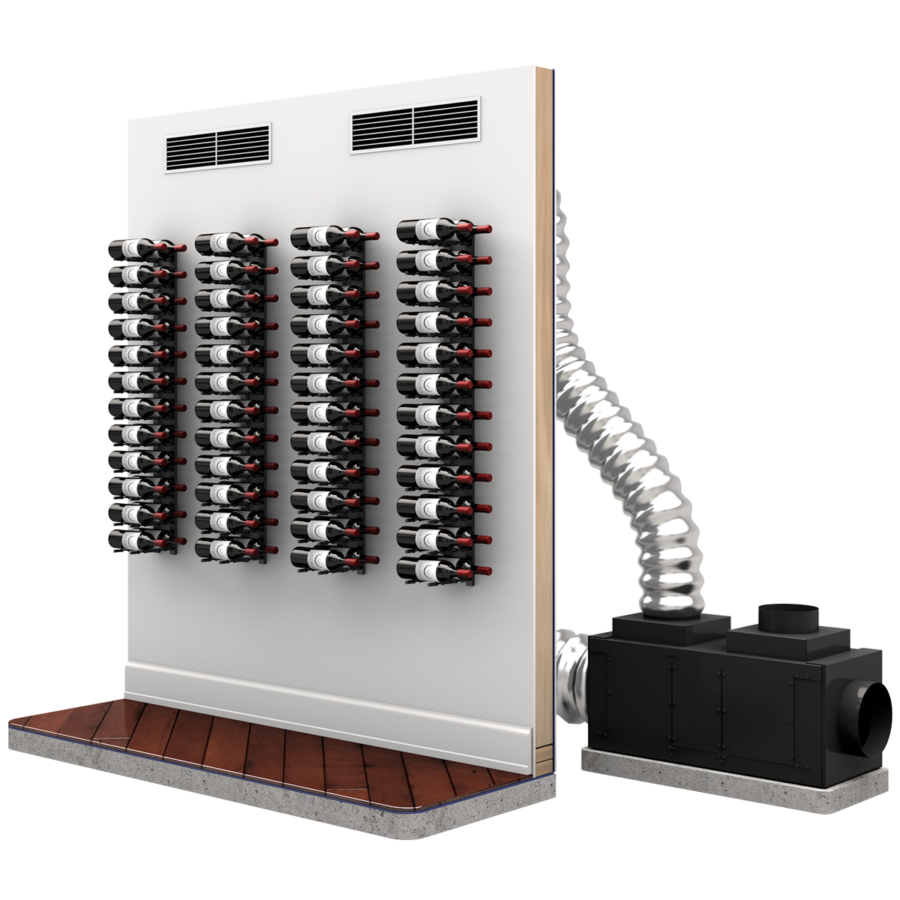

  • Installation: Can be installed up to 25 duct feet away from cellar

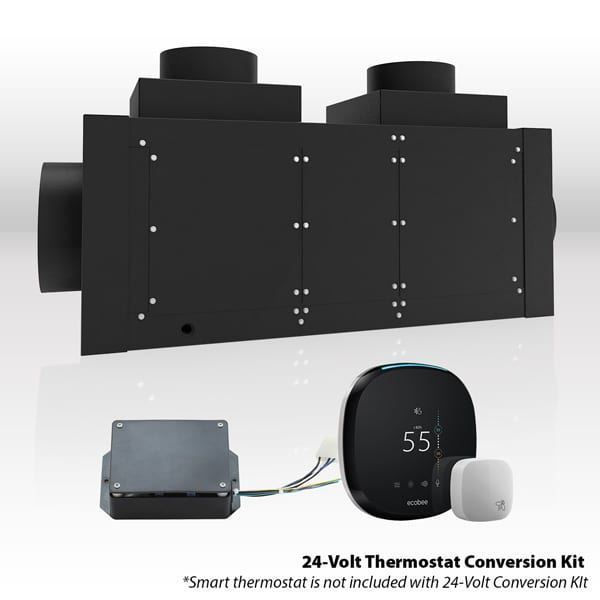

  • Thermostat: Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable) Temp. Delta: Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature

Description

The fully ducted Phantom Series combines powerful cooling capacity with flexible installation options. If space is at a premium in your cellar and you need a powerful, fully ducted unit, the Phantom might be for you. The Phantom’s powerful blowers can be reoriented to the right, left, or top of the unit. This grants you the option of installing the unit in any ducting configuration that best suits your needs, even in limited space.

Not sure if the Phantom is the right unit for your wine cellar? Contact wine cave for any quetions

Note: An HVAC-R technician is recommended for installation.

 Phantom Series Features:

  • Flexible installation options
  • Quiet operation
  • Quick-to-access components for ease of maintenance
  • Corrosion-resistant drip tray
  • Black powder-coated paint scheme
  • Suitable for operation in ambient temperatures as high as 110°

Specifications

Cellar Size: Approx. 1250 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements)

  • BTU/h w/85°F air entering condenser coil: 5521
  • Dimensions: 37"L x 15.75"W x 15.75"H (without duct plenums), 48"L x 15.75"W x 22.75"H (duct plenums on top of unit), 48"L x 22.75"W x 15.75"H (duct plenums on side of unit) Refrigerant: R-134a
  • HP: 1/3
  • Refrigeration Tons: 0.46
  • Voltage Rating: 115V (20-amp dedicated circuit required); 230V (subject to availability)
  • Weight: 115 lbs
  • Amps: 7.5 (running amps)
  • Duct Size: 8" supply, 10" return (evaporator and condenser)
  • Drain Line: 1/2" ID clear plastic tubing
  • Installation: Can be installed up to 25 duct feet away from cellar
  • Thermostat: Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable) Temp. Delta: Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
