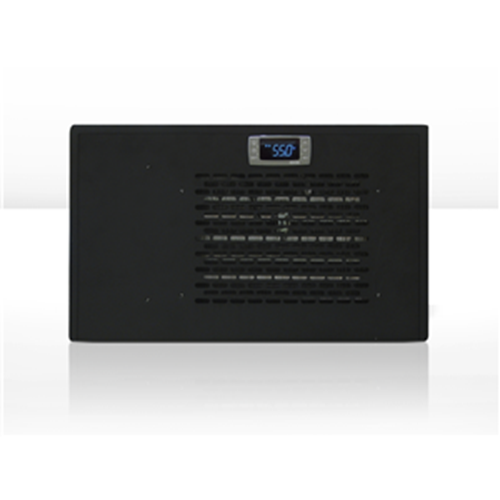

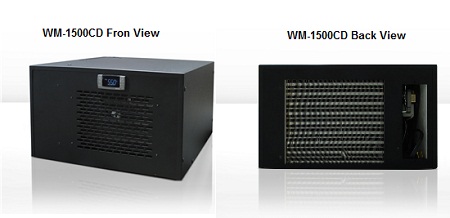

Wine-Mate 1500CD Cooling System is a compact, self-contained cooling system by Vinotemp, designed for small wine cabinets and custom cellars up to 90 cubic feet (approximately 800 bottles).
Key Specifications:
- Cooling Power: 1500 BTU/h
- Dimensions: 18” W x 16.5” D x 10.5” H
- Electrical: 115V / 60Hz / 4A (Requires a dedicated standard outlet)
- Airflow: 120 CFM via four high-speed fans

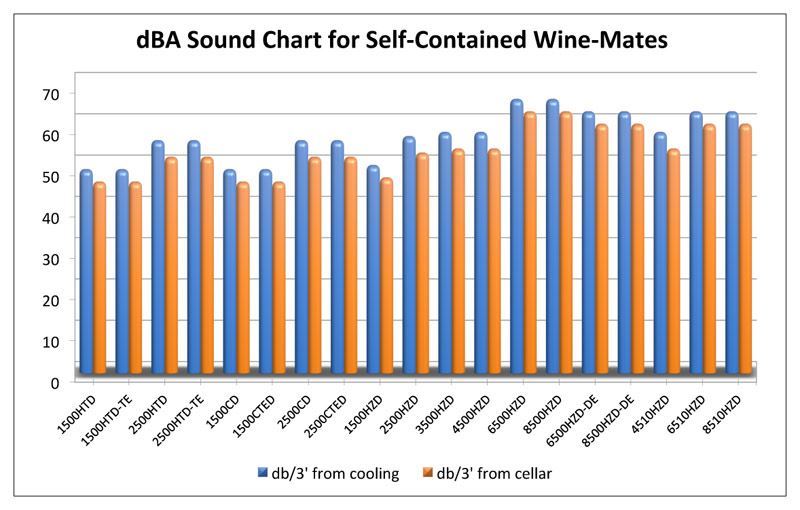

- Noise Level: 49 dBA (unit) / 46 dBA (cabinet interior)
- Refrigerant: Eco-friendly R134a
Climate Control Performance:
- Temperature: Maintains a stable range between 50°F and 65°F.
- Humidity: Automatically regulates relative humidity (50%–75% RH) using an oversized evaporator, eliminating the need for a water line.
- Operating Environment: Optimal performance requires exhaust room temperatures between 50°F and 78°F.
Features & Installation:
- Plug-and-Play: Fully charged and self-contained; no refrigeration specialist or drain lines required.
- Air Distribution: Features bottom cold air discharge for even circulation and versatile top or rear exhaust venting.
- Digital Interface: LED thermostat with manual defrost and integrated maintenance alarms.
- Versatility: Suitable for aging wine as well as storing chocolate, cigars, salami, and fine leather.
