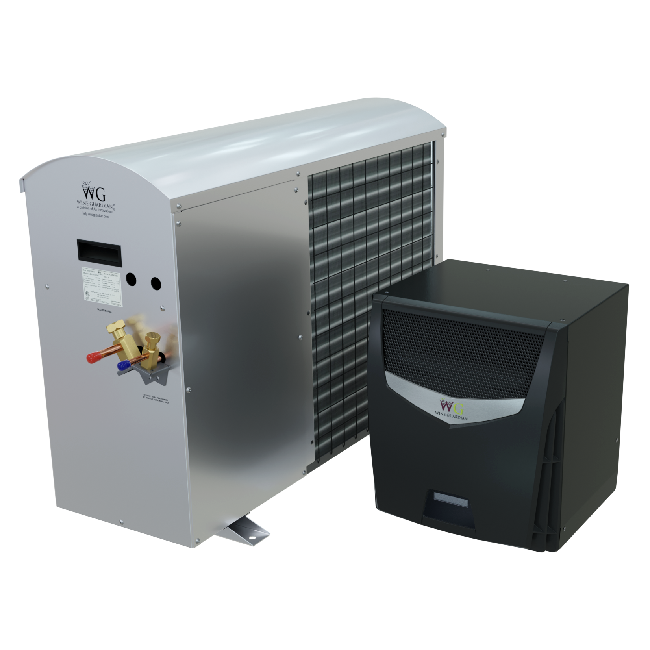

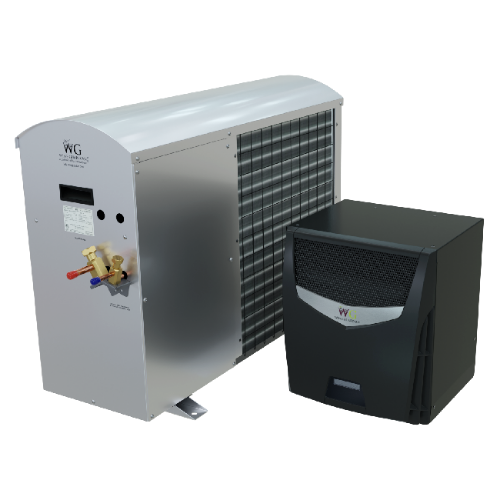

Split Wall Mounted, Wine Guardian WG SS018 - Wine Cellar Cooling Unit

The SS018 Ductless Split wine cellar cooling unit is a cutting-edge system versatile enough for either surface-mounting or through-the-wall mounting in small cellars
SKU: WG SS018
Free shipping
*
$9,380.00

The SS018 Ductless Split wine cellar cooling unit is a cutting-edge system versatile enough for either surface-mounting or through-the-wall mounting in small cellars which have no room for mechanical equipment or are unable to accommodate ductwork.

Appropriate for cellars up to 1200 cubic Feet

Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.

Additional Information

Evaporator: 25 lbs. 13 1/4" l x 14 1/4" w x 15 7/8"h - 115v / 1ph / 60Hz

Condensing Unit: 57 lbs. 34"l x 12" W x 26" H -  208 – 230V / 1ph / 60Hz

  • Constructed for long-term durability with adjustable louvers
  • Commercial-grade with efficient and quiet operation
  • Fan-coil can be surface mounted or mounted through-the-wall - this is exclusive to this unit
  • Fan-coil also fits well above a doorway or within wine racking - making this unit very compact
  • Condensing unit operating capacities from 40°F/4°C to 115°F/46°C
  • Condensing unit standard with outdoor enclosure

Wine Guardian Ductless Split system for wine cellars allows you to surface mount or position as a “through the wall” system within the wine cellar.

The separate evaporator and condensing system for the Wine Guardian Split system cellar cooler allows for very quiet operation and a wine cellar climatized environment that is virtually vibration free. Wine Guardian offers superior air distribution and climate control. Like all Wine Guardian systems, the Split is designed with easy access to all components for any servicing needs.

Operates in ambient environment of 0° to 122° F (-18°C to 50°C) (see Xtreme Low Ambient option to enhance performance to go down to extreme of -20°F (-29°C) )



Technical Specs

Model

SS018 (TTW)

Line Frequency

60 Hz

Capacity

400 – 2800 BTU

Volume

100 – 1200 ft³

Length

13.31"
34" (condenser)

Width

14.25"
12.3" (condenser)

Height

15.87"
26" (condenser)

Weight

25 lbs
75 lbs (condenser)

Electrical

115/1/60

The SS018 Ductless Split wine cellar cooling unit is a cutting-edge system versatile enough for either surface-mounting or through-the-wall mounting in small cellars which have no room for mechanical equipment or are unable to accommodate ductwork.

Appropriate for cellars up to 1200 cubic Feet

Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.

Additional Information

Evaporator: 25 lbs. 13 1/4" l x 14 1/4" w x 15 7/8"h - 115v / 1ph / 60Hz

Condensing Unit: 57 lbs. 34"l x 12" W x 26" H -  208 – 230V / 1ph / 60Hz

  • Constructed for long-term durability with adjustable louvers
  • Commercial-grade with efficient and quiet operation
  • Fan-coil can be surface mounted or mounted through-the-wall - this is exclusive to this unit
  • Fan-coil also fits well above a doorway or within wine racking - making this unit very compact
  • Condensing unit operating capacities from 40°F/4°C to 115°F/46°C
  • Condensing unit standard with outdoor enclosure

Wine Guardian Ductless Split system for wine cellars allows you to surface mount or position as a “through the wall” system within the wine cellar.

The separate evaporator and condensing system for the Wine Guardian Split system cellar cooler allows for very quiet operation and a wine cellar climatized environment that is virtually vibration free. Wine Guardian offers superior air distribution and climate control. Like all Wine Guardian systems, the Split is designed with easy access to all components for any servicing needs.

Operates in ambient environment of 0° to 122° F (-18°C to 50°C) (see Xtreme Low Ambient option to enhance performance to go down to extreme of -20°F (-29°C) )



Technical Specs

Model

SS018 (TTW)

Line Frequency

60 Hz

Capacity

400 – 2800 BTU

Volume

100 – 1200 ft³

Length

13.31"
34" (condenser)

Width

14.25"
12.3" (condenser)

Height

15.87"
26" (condenser)

Weight

25 lbs
75 lbs (condenser)

Electrical

115/1/60
