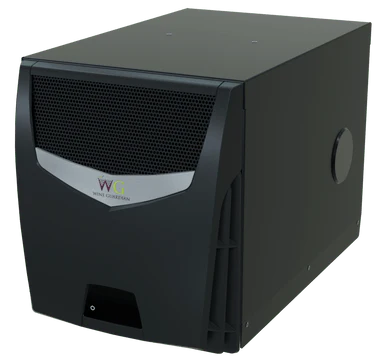

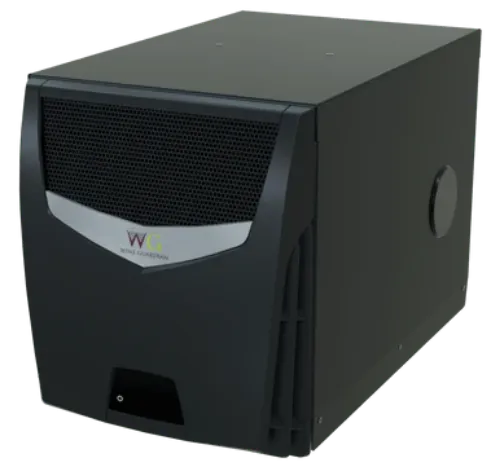

Wine Guardian TTW009 Cooling System
Self contained, air cooled system with integral local user interface controller to control temperature and monitor humidity. Max. Cooling Capacity: 600 cu. ft
Dimensions: 15 7⁄8" H x 14 1⁄4" W x 25" D
Electrical: 115 V, 0.009 ton (1100 BTU/hr)
Weight: ~55 lbs
Max. Cooling Capacity: 600 cu. ft
Features
- Commercial-grade, corrosion-resistant components and an all-aluminum frame for long-term durability
- The only TTW system that controls temperature and displays both temperature and humidity
- Engineered for ideal airflow, including adjustable louvers for optimal cellar air circulation
- The quietest TTW system on the market
- Can be mounted flush with the wall or racking
- EasyMount&™ one-piece wall bracket and support frame included
- The only TTW system certified to Underwriters Laboratory standards
- Integrated condensate evaporation system
- Drain overflow connection
- Specially coated, corrosion-resistant cooling coil
- High pressure limit safety switches that protect major components from sudden pressure spikes and can be manually reset
- On/Auto Fan control that allows customers a choice of running the fan as needed to equalize temperature or to cycle on and off only as needed
- Switchable power cord connection that can be mounted on either front or back of the system (cool, cellar side or warm, condenser side), according to customer's preference
- Certified to Underwriters Laboratories' standards
- Environmentally friendly R-134a refrigerant.
- 15-month parts and 6-month service warranty
Controller Features
The local user interface controller is standard equipment on all Wine Guardian Through-the-Wall systems and is the only unit on the market that features both temperature control and humidity readout.
The controller also incorporates the following standard features.
- Ability to indicate and control temperature in either Deg F or Dec C
- Adjustable high and low temperature alarm setpoints with control panel fault indication
- Adjustable high and low humidity alarm setpoints with control panel fault indication
- Fan "Auto" or always "On" feature
- Ability to control a remote Wine Guardian stand-alone humidifier for adding humidity to the wine cellar
- Ability to add a remote interface controller or one or more remote sensors
- Ability to calibrate the room temperature sensor
- Ability to set an adjustable deadband temperature between heating and cooling mode.
