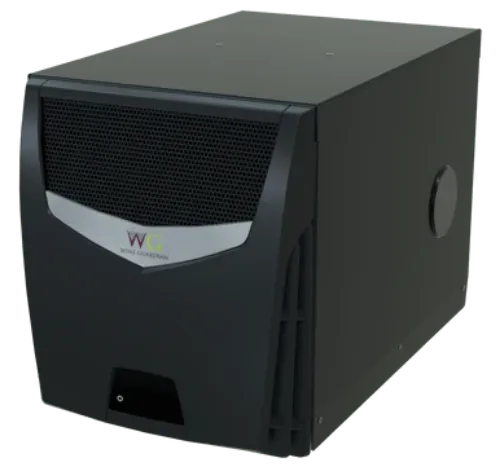

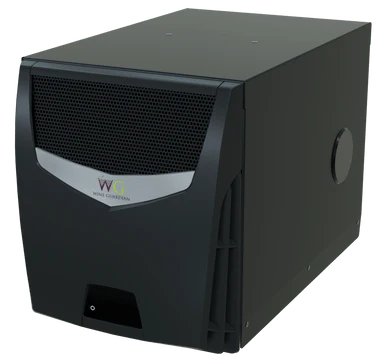

Wine Guardian TTW018 Cooling System

Self contained, air cooled system with integral local user interface controller to control temperature and monitor humidity Max. Cooling Capacity: 1200 cu. ft
SKU: TTW 018
$5,434.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
WG TTW 018

Dimensions: 15 7⁄8" H x 14 1⁄4" W x 25" D
Weight: ~65 lbs
Electrical: 0.18 ton, 115v(2,160 BTU/hr)

Max. Cooling Capacity: 1200 cu. ft

FEATURES of the Through the Wall - TTW:
  • Commercial-grade, corrosion-resistant components and an all-aluminum frame for long-term durability
  • The only TTW system that controls temperature and displays both temperature and humidity
  • Engineered for ideal airflow, including adjustable louvers for optimal cellar air circulation
  • The quietest TTW system on the market
  • Can be mounted flush with the wall or racking
  • EasyMount&™ one-piece wall bracket and support frame included
  • The only TTW system certified to Underwriters Laboratory standards
  • Integrated condensate evaporation system
  • Drain overflow connection
  • Specially coated, corrosion-resistant cooling coil
  • High pressure limit safety switches that protect major components from sudden pressure spikes and can be manually reset
  • On/Auto Fan control that allows customers a choice of running the fan as needed to equalize temperature or to cycle on and off only as needed
  • Switchable power cord connection that can be mounted on either front or back of the system (cool, cellar side or warm, condenser side), according to customer's preference
  • Certified to Underwriters Laboratories' standards
  • Environmentally friendly R-134a refrigerant.
  • 15-month parts and 6-month service warranty.

Controller Features

The local user interface controller is standard equipment on all Wine Guardian Through-the-Wall systems and is the only unit on the market that features both temperature control and humidity readout.

The controller also incorporates the following standard features.
  • Ability to indicate and control temperature in either Deg F or Dec C
  • Adjustable high and low temperature alarm setpoints with control panel fault indication
  • Adjustable high and low humidity alarm setpoints with control panel fault indication
  • Fan "Auto" or always "On" feature
  • Ability to control a remote Wine Guardian stand-alone humidifier for adding humidity to the wine cellar
  • Ability to add a remote interface controller or one or more remote sensors
  • Ability to calibrate the room temperature sensor
  • Ability to set an adjustable deadband temperature between heating and cooling mode
WG TTW 018

Dimensions: 15 7⁄8" H x 14 1⁄4" W x 25" D
Weight: ~65 lbs
Electrical: 0.18 ton, 115v(2,160 BTU/hr)

Max. Cooling Capacity: 1200 cu. ft

FEATURES of the Through the Wall - TTW:
  • Commercial-grade, corrosion-resistant components and an all-aluminum frame for long-term durability
  • The only TTW system that controls temperature and displays both temperature and humidity
  • Engineered for ideal airflow, including adjustable louvers for optimal cellar air circulation
  • The quietest TTW system on the market
  • Can be mounted flush with the wall or racking
  • EasyMount&™ one-piece wall bracket and support frame included
  • The only TTW system certified to Underwriters Laboratory standards
  • Integrated condensate evaporation system
  • Drain overflow connection
  • Specially coated, corrosion-resistant cooling coil
  • High pressure limit safety switches that protect major components from sudden pressure spikes and can be manually reset
  • On/Auto Fan control that allows customers a choice of running the fan as needed to equalize temperature or to cycle on and off only as needed
  • Switchable power cord connection that can be mounted on either front or back of the system (cool, cellar side or warm, condenser side), according to customer's preference
  • Certified to Underwriters Laboratories' standards
  • Environmentally friendly R-134a refrigerant.
  • 15-month parts and 6-month service warranty.

Controller Features

The local user interface controller is standard equipment on all Wine Guardian Through-the-Wall systems and is the only unit on the market that features both temperature control and humidity readout.

The controller also incorporates the following standard features.
  • Ability to indicate and control temperature in either Deg F or Dec C
  • Adjustable high and low temperature alarm setpoints with control panel fault indication
  • Adjustable high and low humidity alarm setpoints with control panel fault indication
  • Fan "Auto" or always "On" feature
  • Ability to control a remote Wine Guardian stand-alone humidifier for adding humidity to the wine cellar
  • Ability to add a remote interface controller or one or more remote sensors
  • Ability to calibrate the room temperature sensor
  • Ability to set an adjustable deadband temperature between heating and cooling mode
