Wine Guardian 1 Ton Ducted Split Wine Cellar Cooling System

The DS088 1 Ton split wine cellar cooling system with ductable fan-coil is ideal for Wine Cellars from: 1500 - 3500 cu.ft.
SKU: WG DS088
Free shipping
*
$12,526.00

The DS088 1 Ton split wine cellar cooling system with ductable fan-coil is ideal for medium to large residential and commercial wine rooms and wine cellars.

The DS088 is a 60Hz system, which is standard in most of North America (incl. USA & Canada). The unit has a max capacity of 9,600 BTU/H (2.81 Kilowatts).

Designed for Wine Cellars from: 1500 - 3500 cu.ft.

Please contact us for assistance in calculating your ductwork requirements.

Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.

Additional Information

The separate evaporator and condensing system for the Wine Guardian Split system cellar cooler allows for very quiet operation and a wine cellar climatized environment that is virtually vibration free. Wine Guardian offers superior air distribution and climate control. Like all Wine Guardian systems, the Split is designed with easy access to all components for any servicing needs.

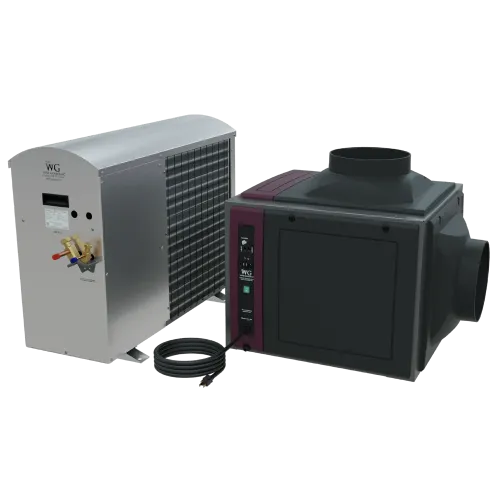

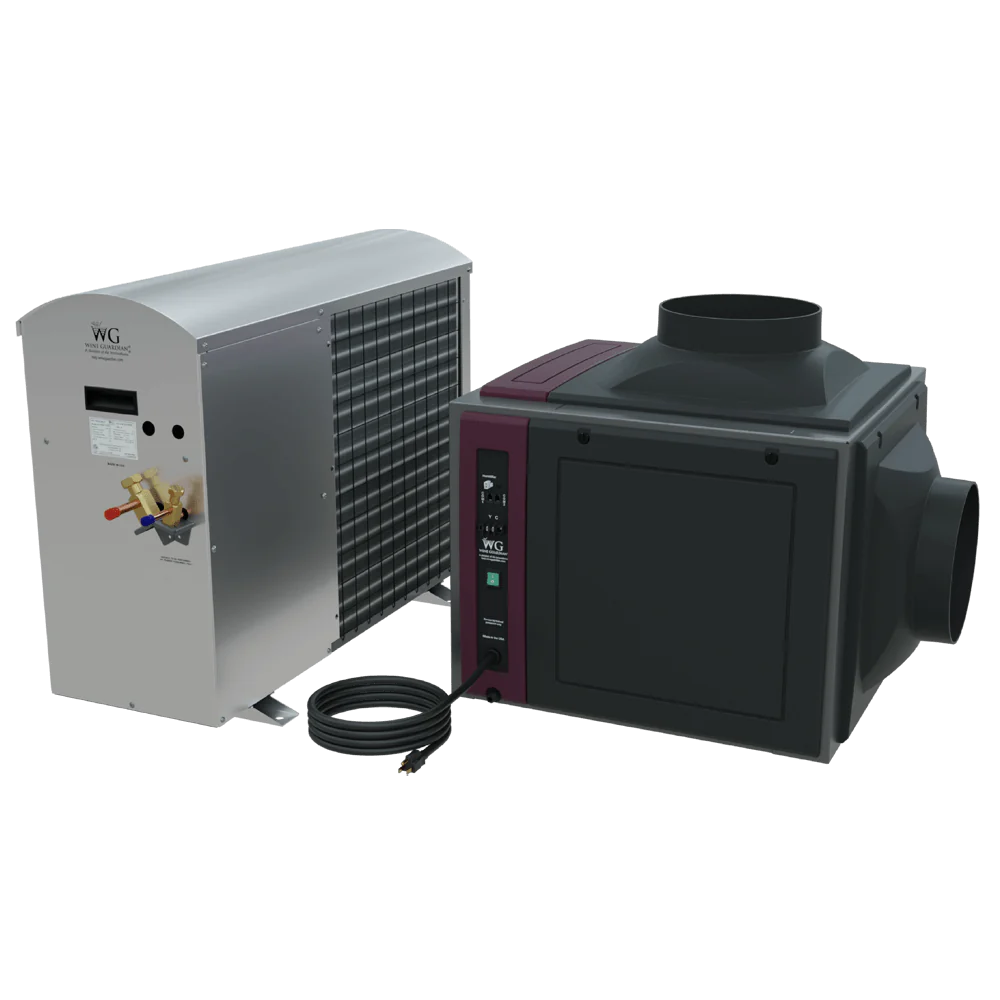

Wine Guardian Split System Wine Cellar Cooling Unit Includes:

  • Condensing Unit & Evaporator (fan coil)
  • Removable multi-panel design - provides easy service access
  • (5) supply air openings - for installation flexibility
  • One Return and One Supply Duct Collar are included for the evaporator side.
  • High Static Fans for ductwork (of extended lengths - 25' to 50' depending on system)
  • Humidity & temperature control in one device with alarm system
  • ETL certified for UL and CSA standards
  • Suitable for outdoor applications
  • Made in the USA

Technical Specs

Model

DS088

Line Frequency

60 Hz

Capacity

5000 – 9840 BTU

Volume

850 – 4500 ft³

Length

23.8" 34" (condenser)

Width

25"12.3" (condenser)

Height

19.7" 26.07" (condenser)

Weight

58 lbs 60 lbs (condenser)

Electrical

208-230/1/60
