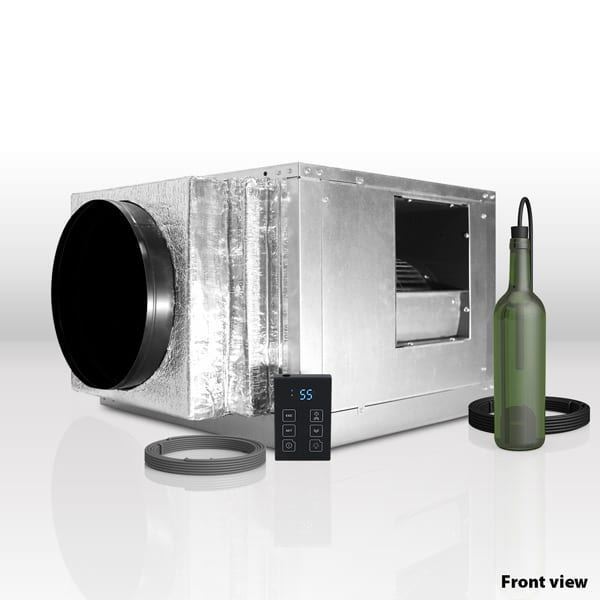

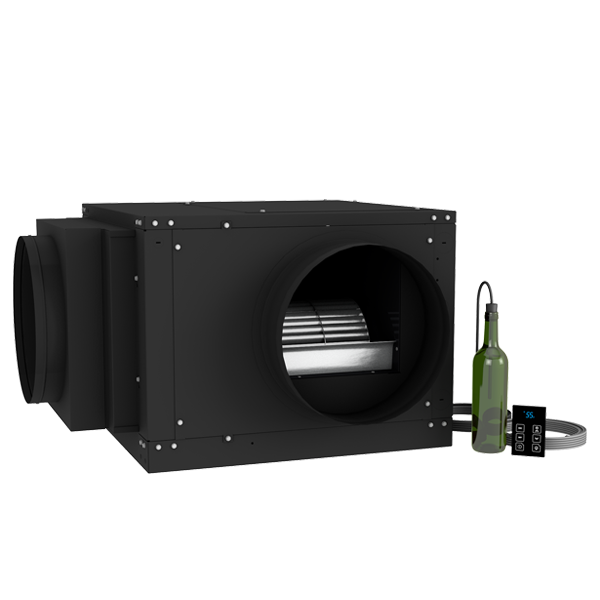

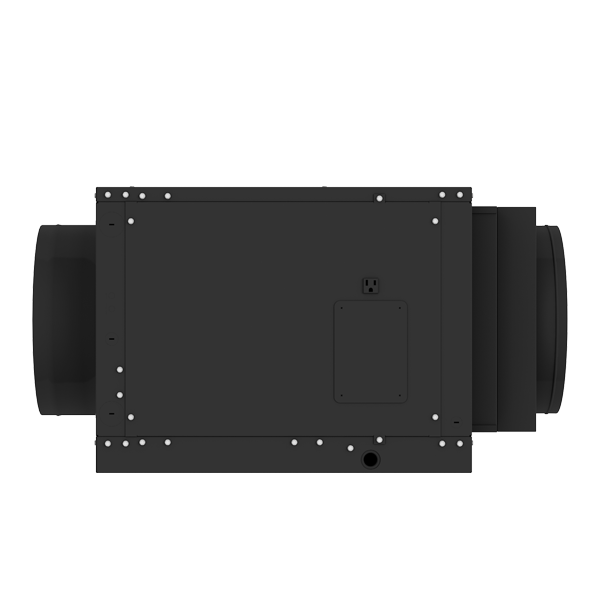

WhisperKOOL Quantum 12000, Ducted 220V Condenser Wine Cellar Cooling Unit

S-WKQS12000-000-2, This fully ducted split system comes in one size, 12000 BTUs. Utilizing 404A refrigerant, Cellar Size: 4,000 cu. ft.
SKU: S-WKQS12000-000-2
Free shipping
$14,098.00

Quantum SS12000

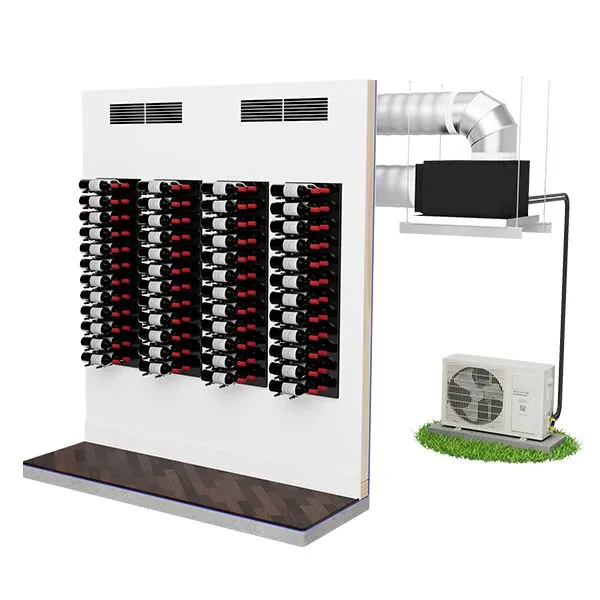

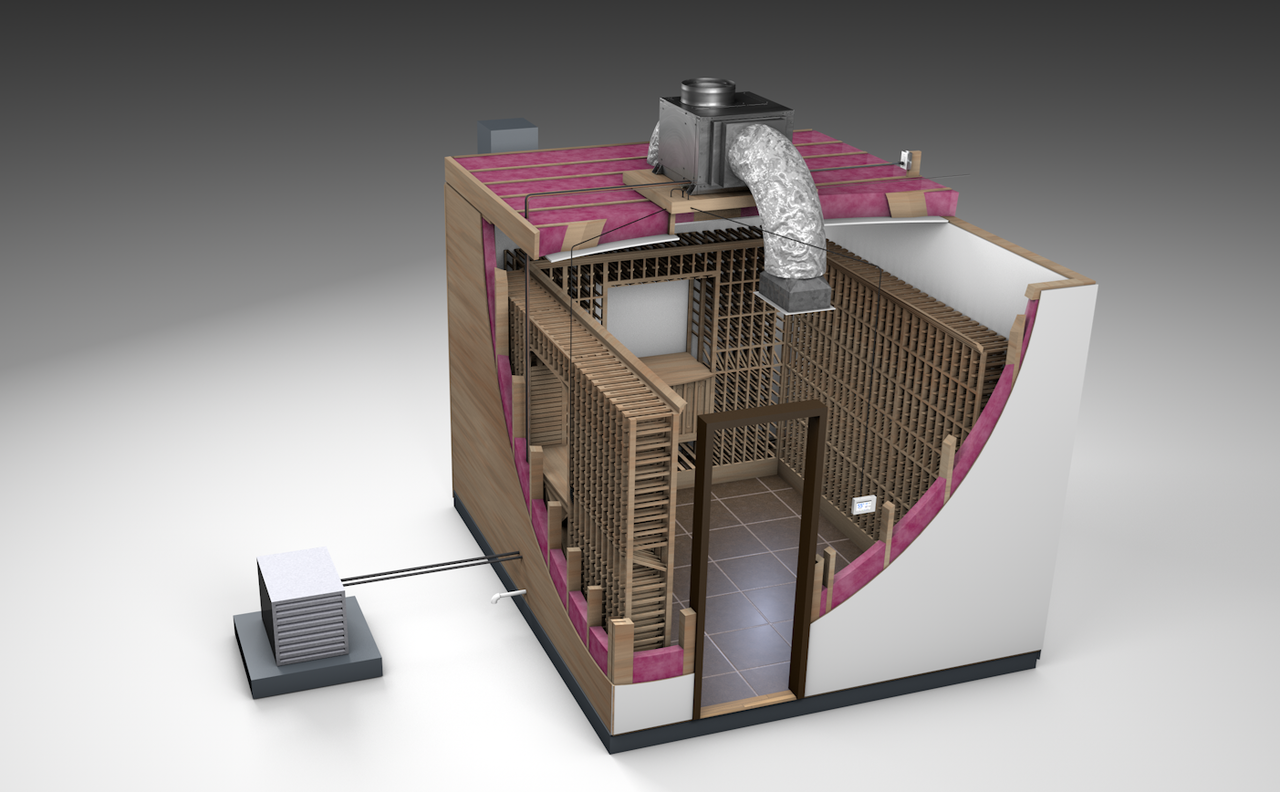

The Quantum Series cooling units is our newest, most advanced cooling systems.  This fully ducted split system comes in one size, 12000 BTUs. Utilizing 404A refrigerant, this system has the built in capacity to be installed outside in cold weather climates where temperatures get as low as -15 degrees.  Simple to install by a certified technician, our pump down technology does not require any wiring from the condenser to the evaporator.  Featuring interchangeable panels which allow the installer to direct the air flow in the most efficient direction to maintain maximum efficiency.

Product Features:

  • Fully Ducted Spilt System
  • 12000 BTU capacity for larger cellars
  • Interchangeable evaporator airflow panels
  • Pump down system technology
  • Advanced electronic display
  • Liquid bottle probe
  • Energy saving mode
  • Cold weather climates to -15 degrees Fahrenheit
  • Electro-fin coated coils for protection against outgassing that occurs in cellars
  • Condensing unit can be placed outdoors w/optional housing
  • Designed with the highest quality, professional grade parts for longevity and performance
  • Durable galvanized housing
  • 50ft Control & Liquid Bottle Probe
  • 2 year warranty

Specifications

  • Cellar Size: 4,000 cu. ft. (Properly Insulated Cellar)
  • Dimensions (Evaporator Unit): 29.5”L x 30.9”W x 19.8”H
  • Dimensions (Condensing Unit): 24”L x 19.4”W x 16.1”H
  • AMPS (starting/running): Evap : 4.3 / 3.2 Cond: 39.6 / 9.9

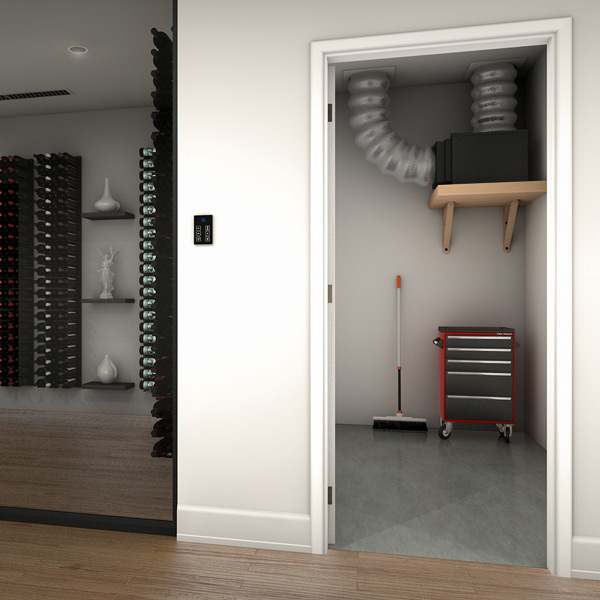

  • Installation (Evaporator Unit): Evaporator can be installed up to 25 duct feet away from cellar with 14” flex duct

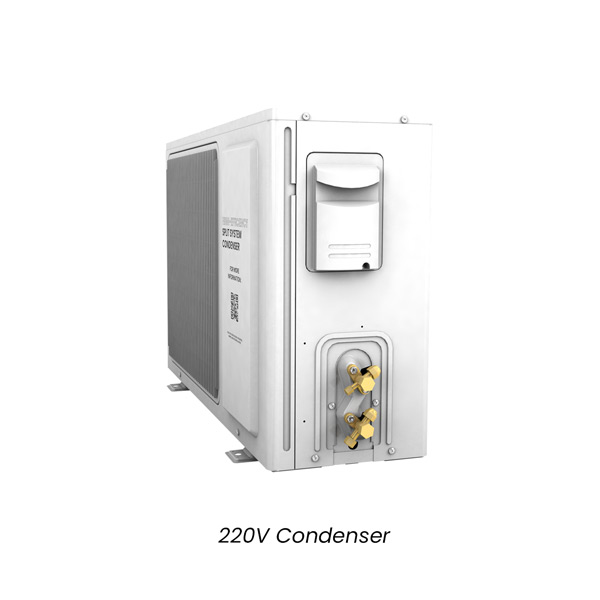

  • Installation (Condensing Unit):
  • Condensor can be installed up to 100 line feet from Evaporator
  • Temp. Delta: 55°F temperature differential between the cellar temperature and condenser air intake temperature.
  • Thermostat: Digital Control Display
  • Warranty: 2 year parts and labor

Quantum SS12000

The Quantum Series cooling units is our newest, most advanced cooling systems.  This fully ducted split system comes in one size, 12000 BTUs. Utilizing 404A refrigerant, this system has the built in capacity to be installed outside in cold weather climates where temperatures get as low as -15 degrees.  Simple to install by a certified technician, our pump down technology does not require any wiring from the condenser to the evaporator.  Featuring interchangeable panels which allow the installer to direct the air flow in the most efficient direction to maintain maximum efficiency.

Product Features:

  • Fully Ducted Spilt System
  • 12000 BTU capacity for larger cellars
  • Interchangeable evaporator airflow panels
  • Pump down system technology
  • Advanced electronic display
  • Liquid bottle probe
  • Energy saving mode
  • Cold weather climates to -15 degrees Fahrenheit
  • Electro-fin coated coils for protection against outgassing that occurs in cellars
  • Condensing unit can be placed outdoors w/optional housing
  • Designed with the highest quality, professional grade parts for longevity and performance
  • Durable galvanized housing
  • 50ft Control & Liquid Bottle Probe
  • 2 year warranty

Specifications

  • Cellar Size: 4,000 cu. ft. (Properly Insulated Cellar)
  • Dimensions (Evaporator Unit): 29.5”L x 30.9”W x 19.8”H
  • Dimensions (Condensing Unit): 24”L x 19.4”W x 16.1”H
  • AMPS (starting/running): Evap : 4.3 / 3.2 Cond: 39.6 / 9.9
  • Installation (Evaporator Unit): Evaporator can be installed up to 25 duct feet away from cellar with 14” flex duct
  • Installation (Condensing Unit):
  • Condensor can be installed up to 100 line feet from Evaporator
  • Temp. Delta: 55°F temperature differential between the cellar temperature and condenser air intake temperature.
  • Thermostat: Digital Control Display
  • Warranty: 2 year parts and labor
