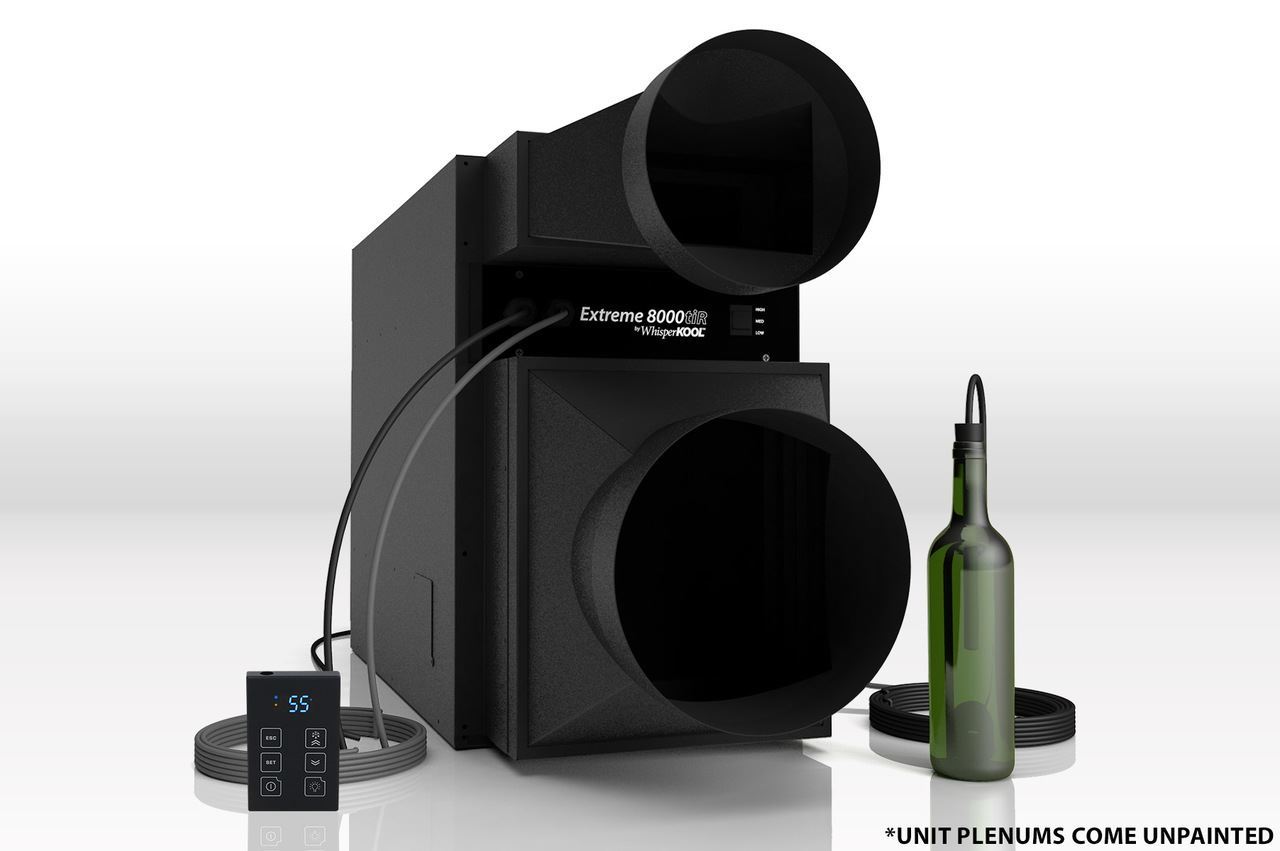

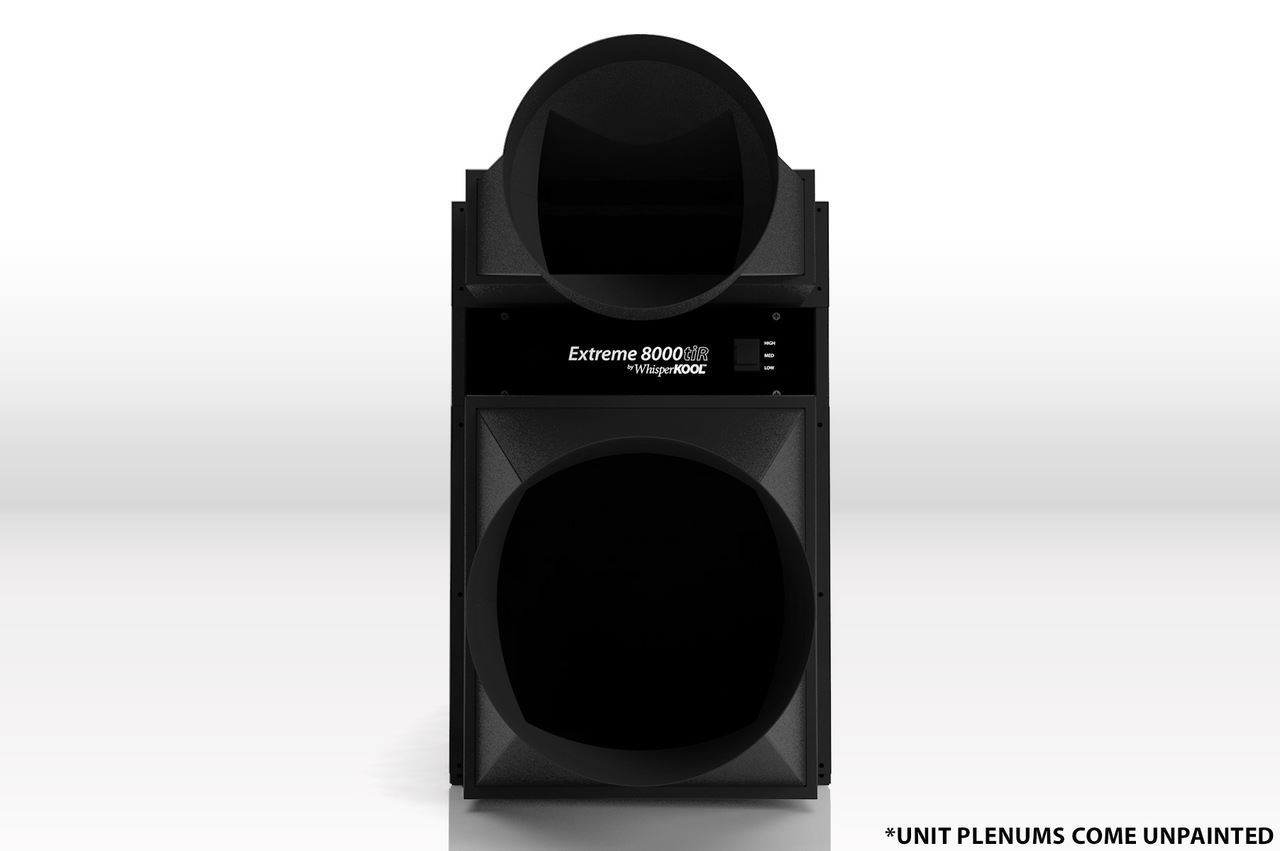

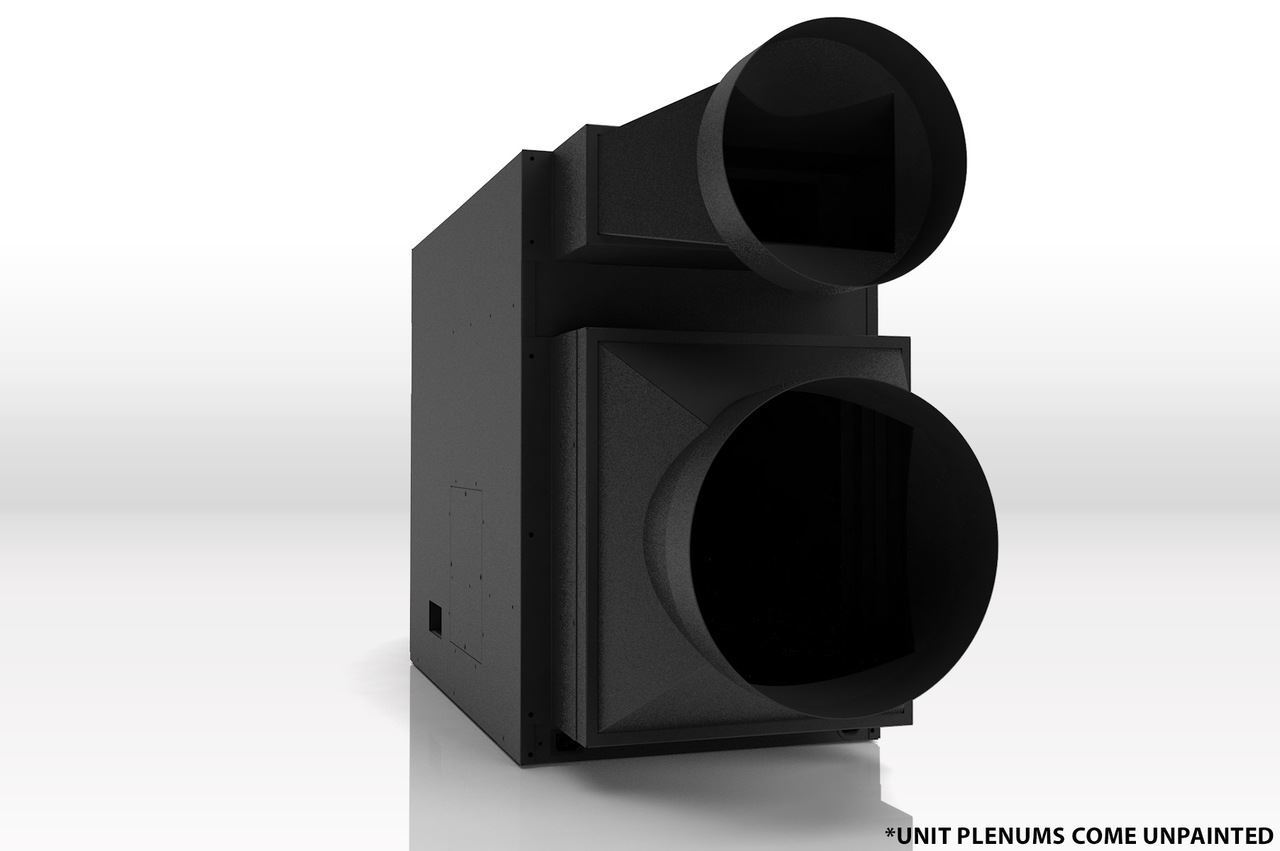

WhisperKOOL 8000 tiR Extreme Cooling Unit Fully Ducted

U-WKEX8000-115-FD-4, The Fully Ducted Extreme Series units can be positioned up to 25 ducted feet from the cellar, creating a noise-free cellar environment. Cellar Size: 2000 cu. ft.
SKU: U-WKEX8000-115-FD-4
Free shipping
$9,658.00

Extreme tiR fully ducted (FD): This product is intended for fully ducted installations. Fully ducted units are for customers who don’t want to see their unit in the cellar. The duct plenums for the evaporator and condenser will be included with your purchase. This unit also comes with a KDT Plus remote controller and thermostat. The controller can be mounted outside the cellar, allowing you to monitor your cellar temperature without needing to enter. The controller can be mounted up to 50 feet away from the Extreme unit.

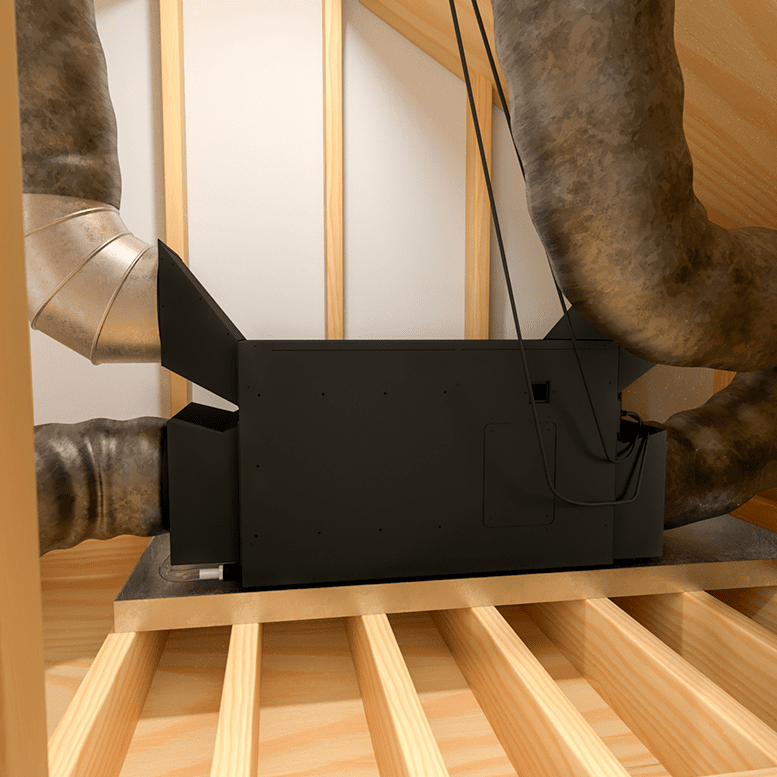

NOTE: If you are planning to place this unit in the attic and use ducting, please contact our sales team for pricing. You may not need ducting equipment for the condenser side of the system.

Specifications

Cellar Size: Approx. 2000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (ach wine cellar is unique and has specific cooling requirements)
  • BTU/h w/85°F air entering condenser coil: 5760
  • Dimensions: 28"L x 14.25"W x 22.5"H
  • Refrigerant: R-134a
  • HP: 1/3+
  • Refrigeration Tons: 0.51
  • Voltage Rating: 115V (20-amp dedicated circuit required); 230V (subject to availability)
  • Weight: 150 lbs Amps: 10 (running amps) Duct Size: 8" supply, 10" return (evaporator and condenser) Drain Line: 3/8” ID clear plastic tubing
  • Installation: Can be installed up to 25 duct feet away from cellar
  • Thermostat: Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable)
  • Temp. Delta: Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature

Extreme tiR fully ducted (FD): This product is intended for fully ducted installations. Fully ducted units are for customers who don’t want to see their unit in the cellar. The duct plenums for the evaporator and condenser will be included with your purchase. This unit also comes with a KDT Plus remote controller and thermostat. The controller can be mounted outside the cellar, allowing you to monitor your cellar temperature without needing to enter. The controller can be mounted up to 50 feet away from the Extreme unit.

NOTE: If you are planning to place this unit in the attic and use ducting, please contact our sales team for pricing. You may not need ducting equipment for the condenser side of the system.

Specifications

Cellar Size: Approx. 2000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (ach wine cellar is unique and has specific cooling requirements)
  • BTU/h w/85°F air entering condenser coil: 5760
  • Dimensions: 28"L x 14.25"W x 22.5"H
  • Refrigerant: R-134a
  • HP: 1/3+
  • Refrigeration Tons: 0.51
  • Voltage Rating: 115V (20-amp dedicated circuit required); 230V (subject to availability)
  • Weight: 150 lbs Amps: 10 (running amps) Duct Size: 8" supply, 10" return (evaporator and condenser) Drain Line: 3/8” ID clear plastic tubing
  • Installation: Can be installed up to 25 duct feet away from cellar
  • Thermostat: Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable)
  • Temp. Delta: Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
